Product Overview

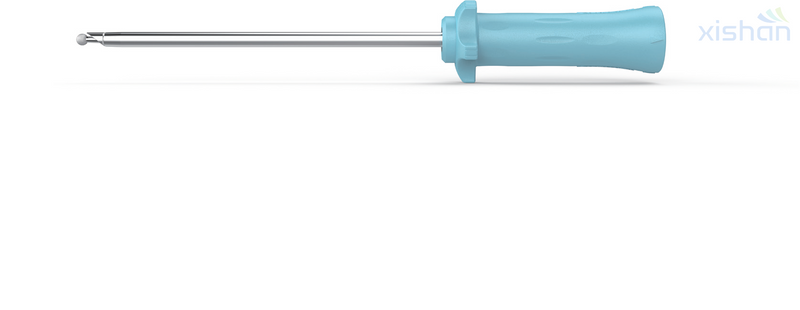

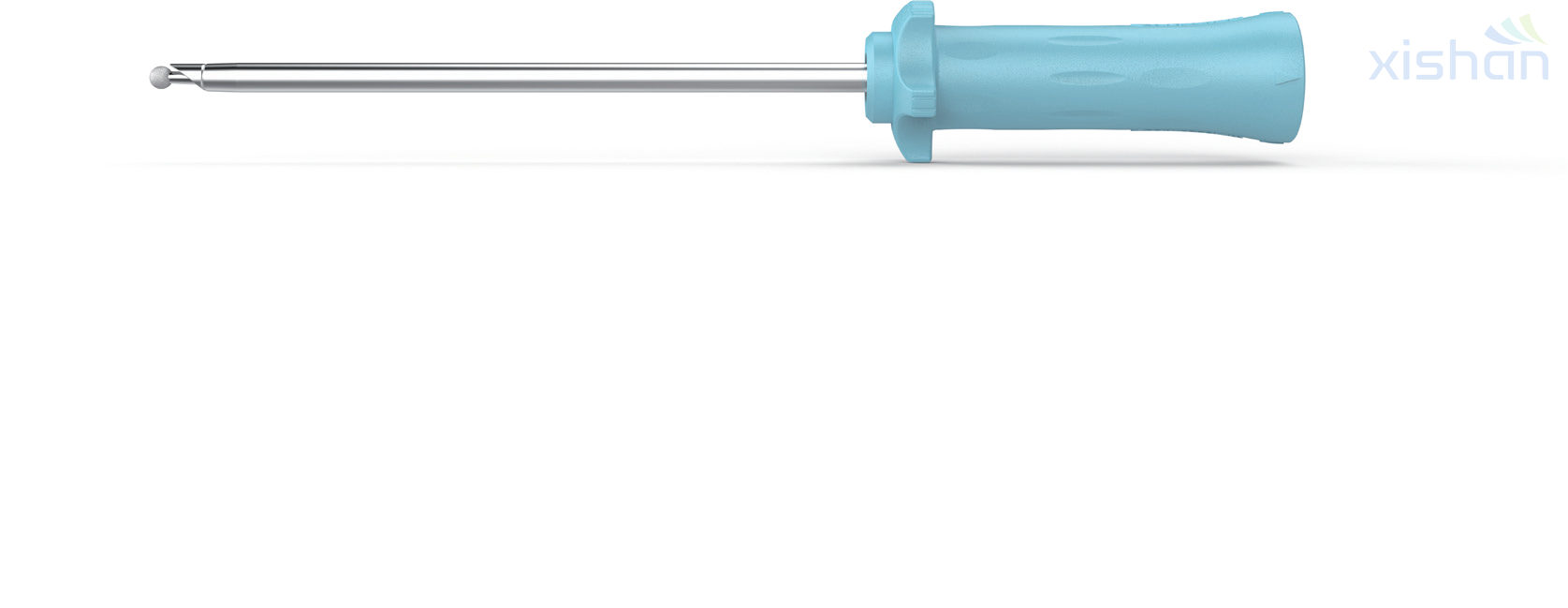

The UBE Bur - Adjustable Tube is a professional minimally invasive surgical tool developed by XISHAN for spinal surgery. It is designed to solve the problems of low precision and inconvenient operation in traditional spinal surgery instruments, and is suitable for a variety of spinal diseases such as Lumbar Disc Herniation (LDH), Lumbar Spinal Stenosis (LSS), and Thoracic Disc Herniation. The product adopts a penhold design and adjustable sheath structure, which can realize precise cutting and grinding of spinal tissues under the minimally invasive channel, greatly improving the safety and efficiency of spinal surgery.

UBE-2 - JZMB

Key Advantages

Adjustable Sheath Multi-purpose Knife

The adjustable sheath design of the product can adapt to different surgical channel sizes, realizing the multi-purpose function of one knife. Surgeons can adjust the sheath length according to the surgical site and lesion size, avoiding the need to replace multiple instruments during the operation and shortening the operation time.

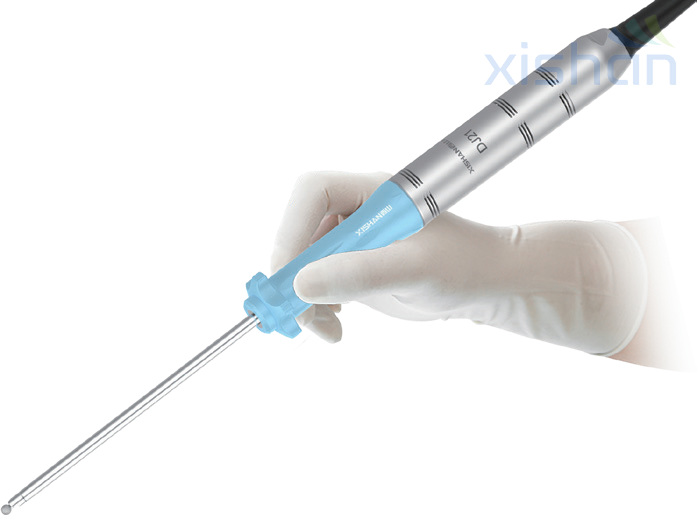

Penhold Design for Precision & Comfort

The ergonomic penhold design fits the surgeon's hand posture, which can effectively reduce hand fatigue during long-term surgery. The precise force transmission structure ensures that every operation of the surgeon can be accurately transmitted to the surgical site, improving the precision of tissue cutting and grinding.

Non-slip Mechanical Design

The product adopts a mechanical locking structure, which can realize a snug and non-slip fit between the handle and the working head. It avoids the slipping of the instrument during the operation, prevents accidental injury to normal tissues, and improves the safety of the operation.

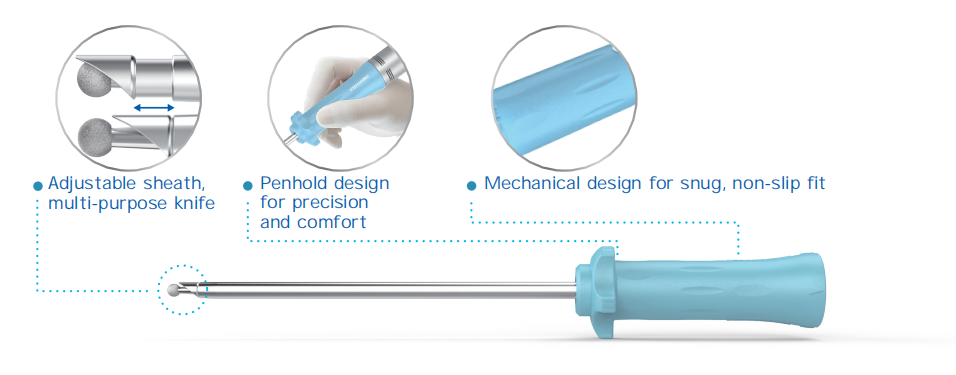

Single-use Sterile UBE Bur_02

Technical Specification

Core Parameter Description

The UBE Bur - Adjustable Tube has a working head diameter of 3.5mm, which is suitable for the minimally invasive channel of spinal surgery. The total length of the instrument is 110mm, which can reach deep spinal tissues without damaging surrounding tissues. The product provides two types of working heads: diamond and stainless steel, which can meet the different needs of grinding hard tissues such as bone and cutting soft tissues such as intervertebral disc.

Parameter Table

Parameter Category	Specification Details
Working Head Diameter	3.5 mm
Total Length	110 mm
Working Head Material	Diamond / Stainless Steel
Design Style	Penhold Ergonomic Design
Applicable Surgery	Minimally Invasive Spinal Surgery

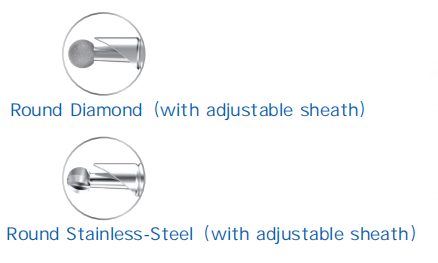

UBE adjustable

Attachments & Tools

UBE Bur - Adjustable Tube main body (Model: JZMx)

Disposable diamond UBE bur working head

Disposable stainless-steel UBE bur working head

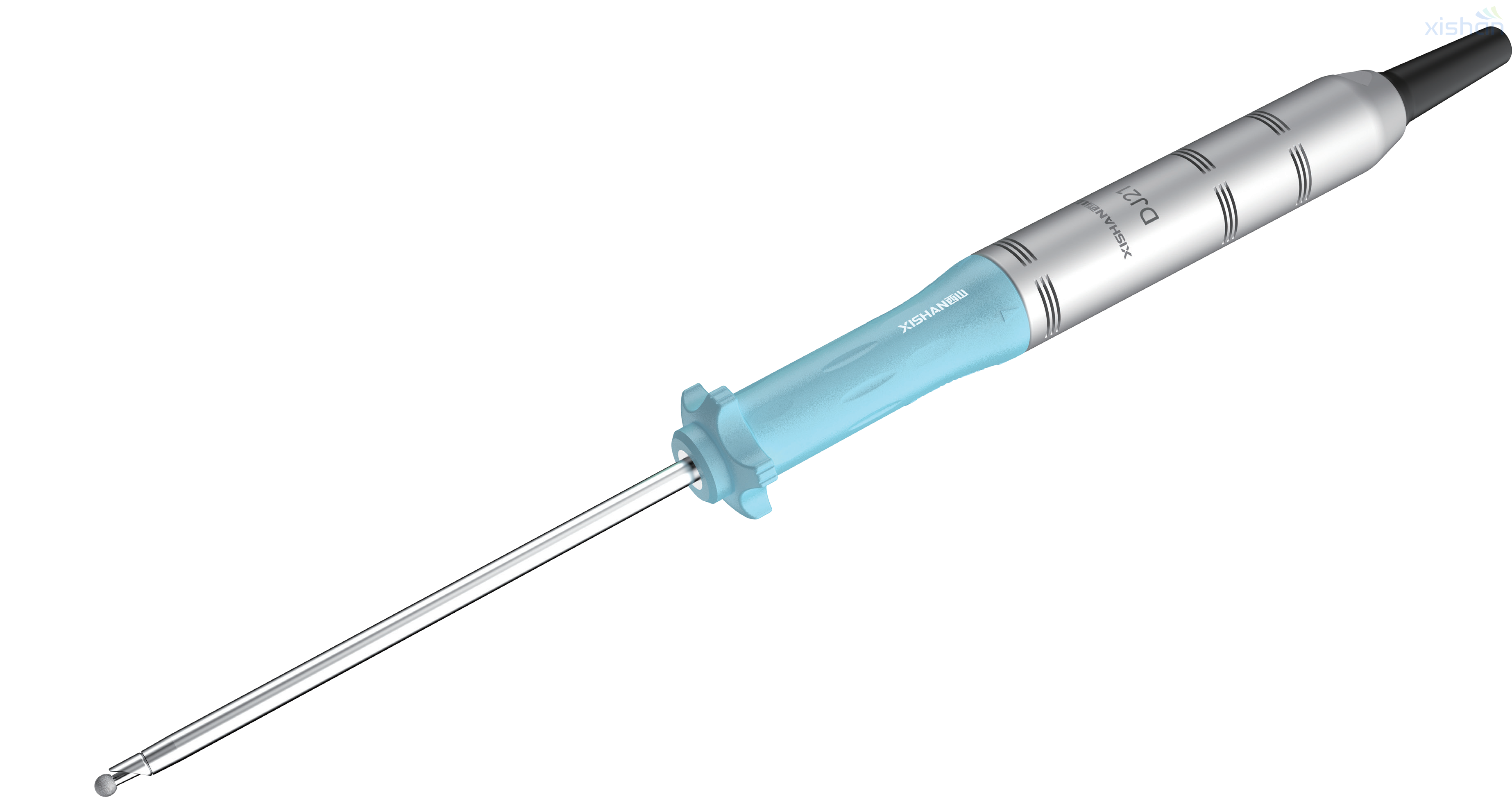

Micromotor DJ21 (for direct connection with UBE bur)

Micromotor direct connection UBE bur adapter

Instrument disinfection and storage box

FAQ

What spinal diseases can theUBE Bur - Adjustable Tube treat?

It is applicable to Lumbar Disc Herniation, Lumbar Spinal Stenosis, Degenerative Spondylolisthesis, Synovial Cysts, Cervical Radiculopathy, Thoracic Disc Herniation and other spinal diseases.

Is the working head of the product disposable?

Yes. The diamond UBE bur and stainless-steel UBE bur working heads are disposable, which can avoid cross-infection and ensure the safety of patients.

What is the advantage of matching with micromotor DJ21?

The direct connection between the product and micromotor DJ21 can realize stable and adjustable speed drive, ensuring the stability of the working head during high-speed rotation and improving the grinding and cutting effect of tissues.
