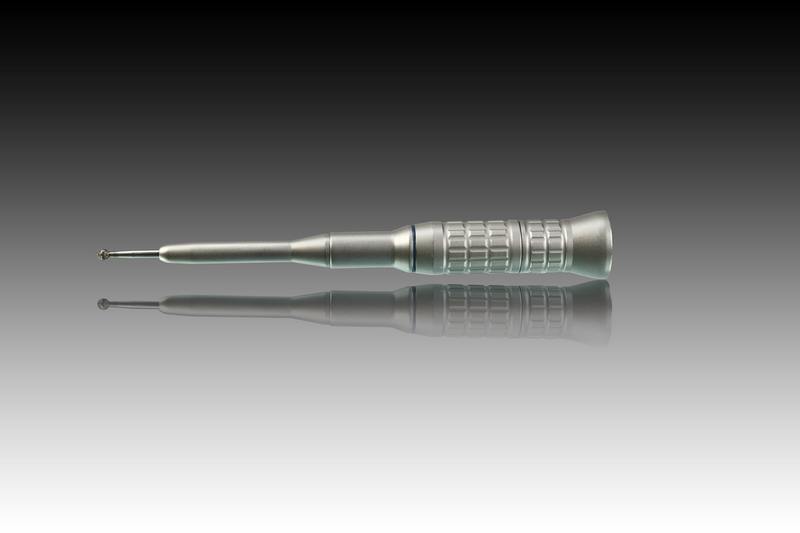

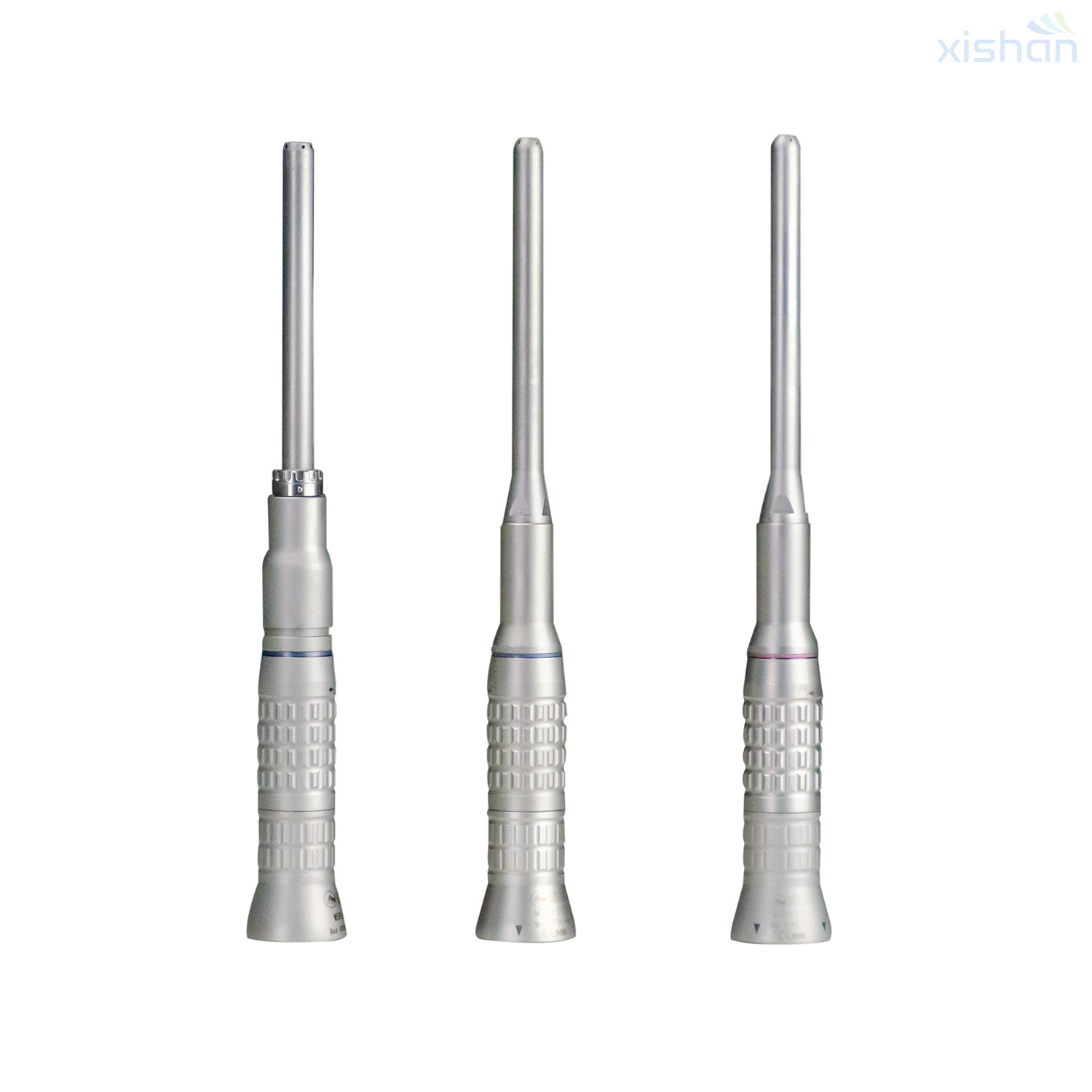

Straight High-speed Handpiece

Key Advantages

Superior Stability & Control

It provides exceptional axial stability, significantly reducing unintended skiving (slippage) during bone cutting. Surgeons also receive direct haptic feedback, which improves depth perception and procedural accuracy.

Broad Cross-specialty Applicability

The 0° angle design eliminates the need for angle adjustments, making it suitable for most standard bone-cutting tasks across ENT, neurosurgery, and orthopedics.

Faster Setup & Operational Simplicity

No angle alignment or recalibration is required before use, saving valuable surgical time. It is particularly ideal for high-volume procedures such as dental implant osteotomies.

Autoclavable for Sterility

The handpiece is fully autoclavable, supporting standard sterilization protocols to meet strict operating room infection control requirements.

Technical Specification

The Straight High-speed Handpiece combines adjustable speed and variable working lengths to accommodate diverse surgical needs, with detailed parameters shown below:

Attachments & Tools

A full range of compatible attachments and tools are available for the Straight High-speed Handpiece to meet diverse clinical needs:

Small Bore Burs (various lengths and diameters): Round carbide bur, Round diamond bur, Round stainless-steel bur, Match-head stainless-steel bur, Straight-fluted acorn stainless-steel bur, Oblique-fluted acorn stainless-steel bur

Irrigation Tube: MSB-FJ1A, MSB-FJ1B, MSB-FJ1C, MSB-FJ1D

FAQ

Can the speed of the handpiece be adjusted during surgery?

Yes, the speed is adjustable from 20% to 100% (16,000~80,000 r/min), allowing surgeons to adapt to different bone densities and cutting requirements.

What working length options are available?

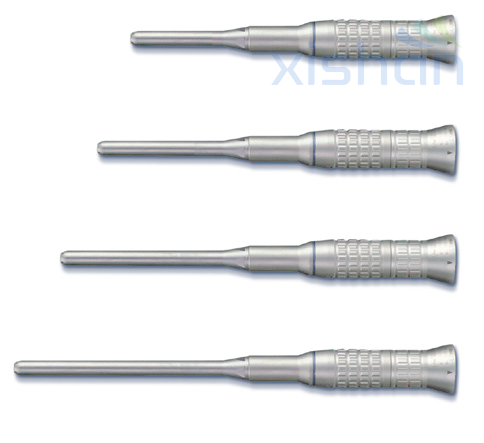

It offers four working length options: 70 mm, 95 mm, 125 mm, and 150 mm, catering to procedures with varying access depth needs.

Is the handpiece compatible with standard surgical burs?

Yes, it is compatible with a wide range of standard burs, including carbide, diamond, and stainless-steel types, for flexible clinical application.
