Slim Bur

Key Advantages

Steplessly Adjustable Exposure Length

The Slim Bur offers steplessly adjustable exposure length, allowing surgeons to customize the working length flexibly based on surgical site requirements. This feature ensures optimal adaptation to different anatomical structures, improving operational accuracy.

Slimmer Design for Enhanced Vision

With a slim bore of 1.19 mm, the Slim Bur reduces tissue trauma and provides a clearer view of the surgical field. Its compact size minimizes interference with surrounding tissues and endoscopic equipment, supporting precise manipulation in narrow spaces.

Extended Reach for Deep Tissue Access

The instrument’s extended length options enable surgeons to reach deeper surgical areas that are otherwise hard to access. This advantage is critical for complex procedures such as trans-nasal skull-base surgery, where deep tissue navigation is essential.

Technical Specification

The Slim Bur combines precise dimensions and versatile configurations to meet rigorous surgical standards. Below is the detailed parameter description and comparison table:

Core Parameter Description

Bore Size: 1.19 mm, ensuring a slim profile for minimal invasiveness

Diameter Options: 1.5 / 2 / 2.5 / 3 / 4 mm, adapting to different tissue incision and drilling needs

Length Options: 100 / 105 / 155 / 160 / 175 / 180 / 195 / 200 mm, covering short to long reach requirements

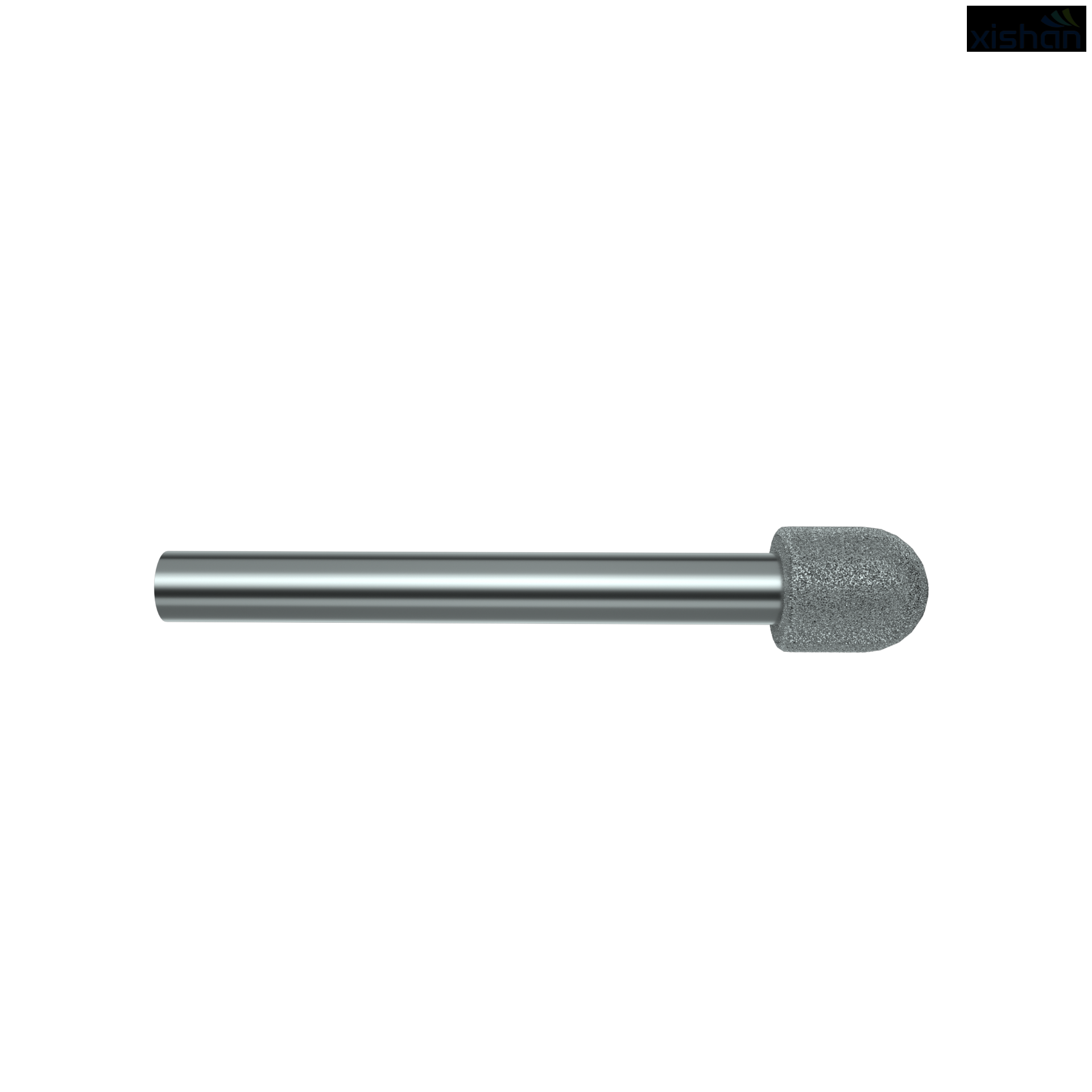

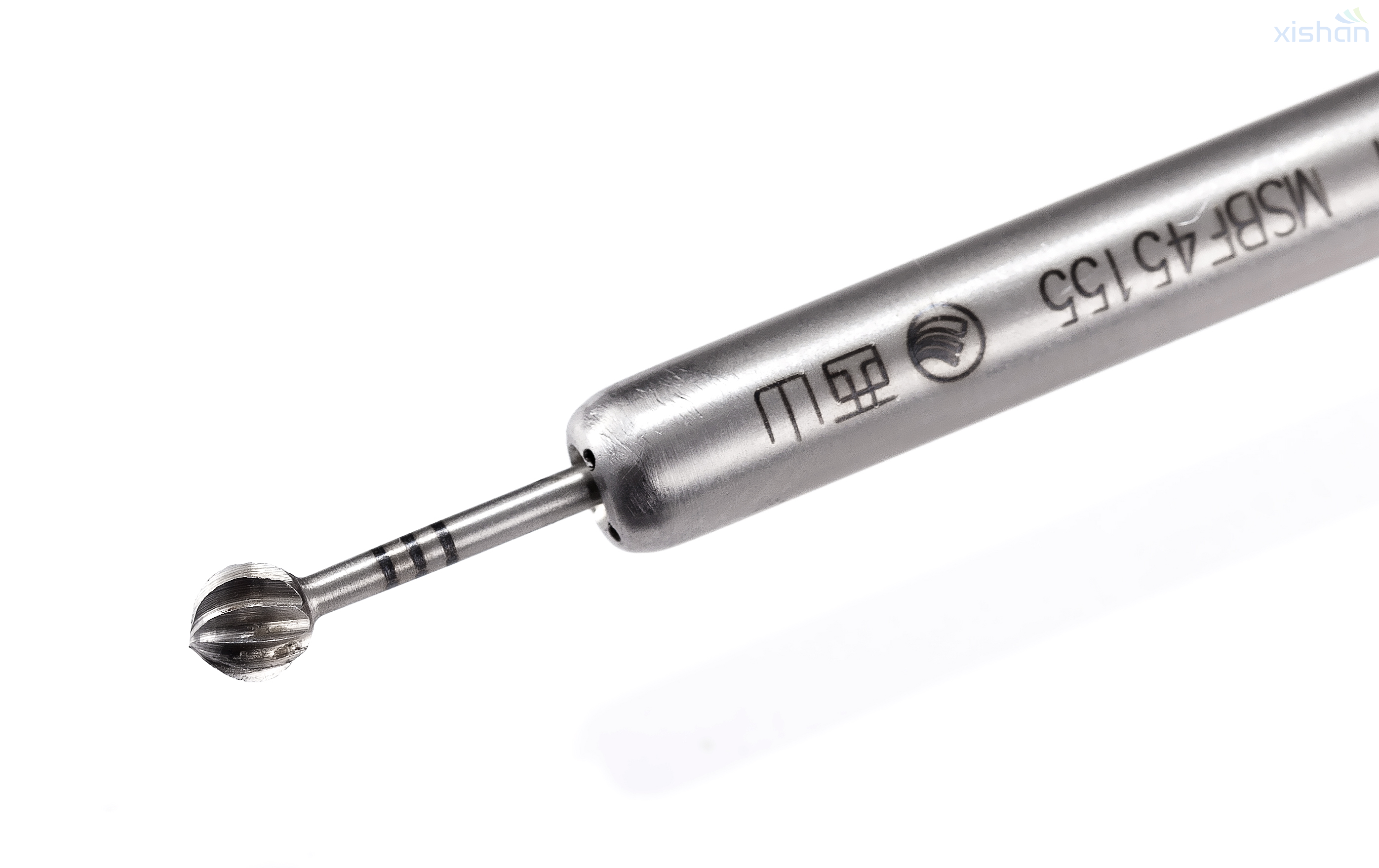

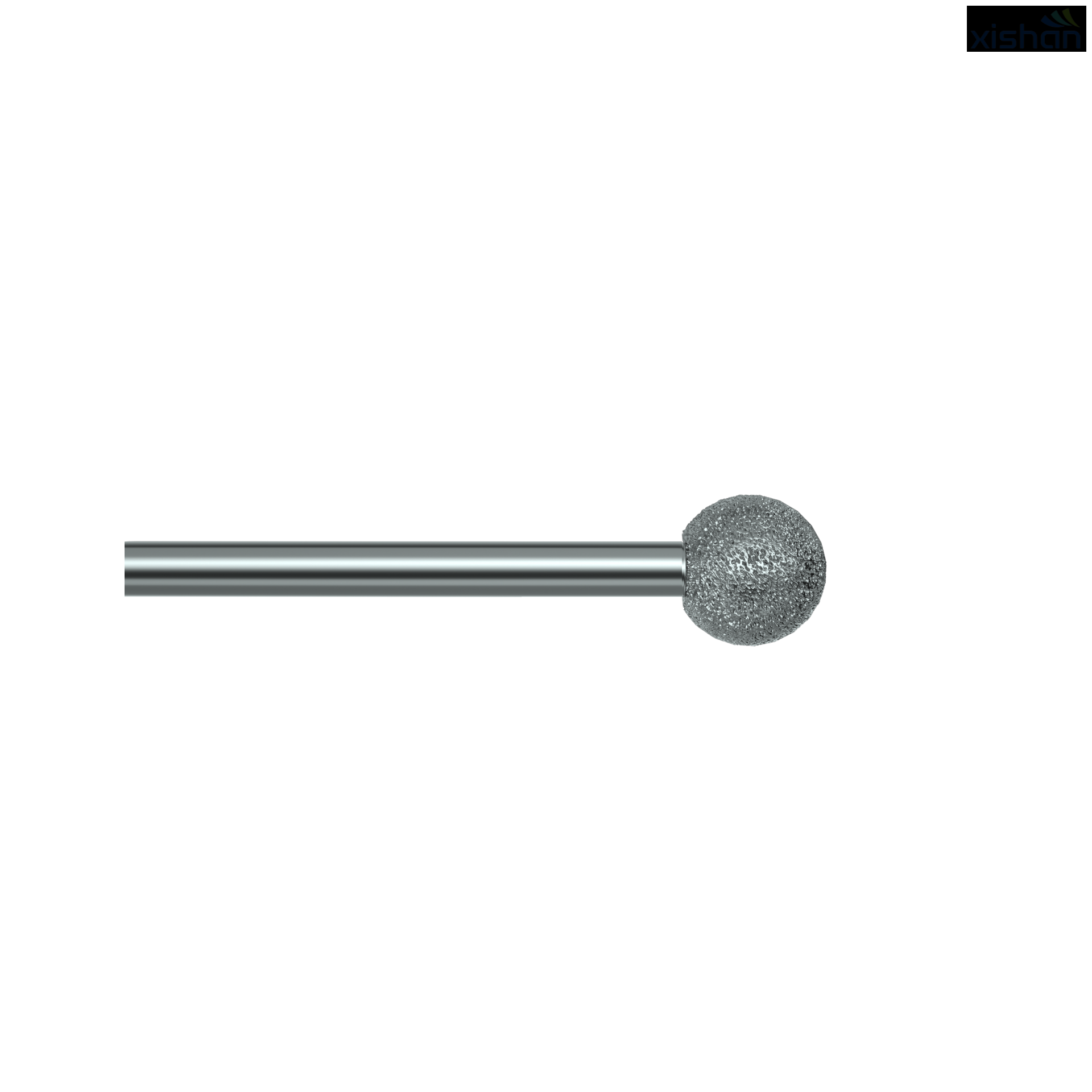

Tip Types: Round Diamond, Match-head Diamond, Round Stainless-steel, Match-head Stainless-steel, suitable for different drilling and cutting tasks

Usage Type: Reusable / Single-use, offering flexibility for clinical infection control

Specification Table

Attachments & Tools

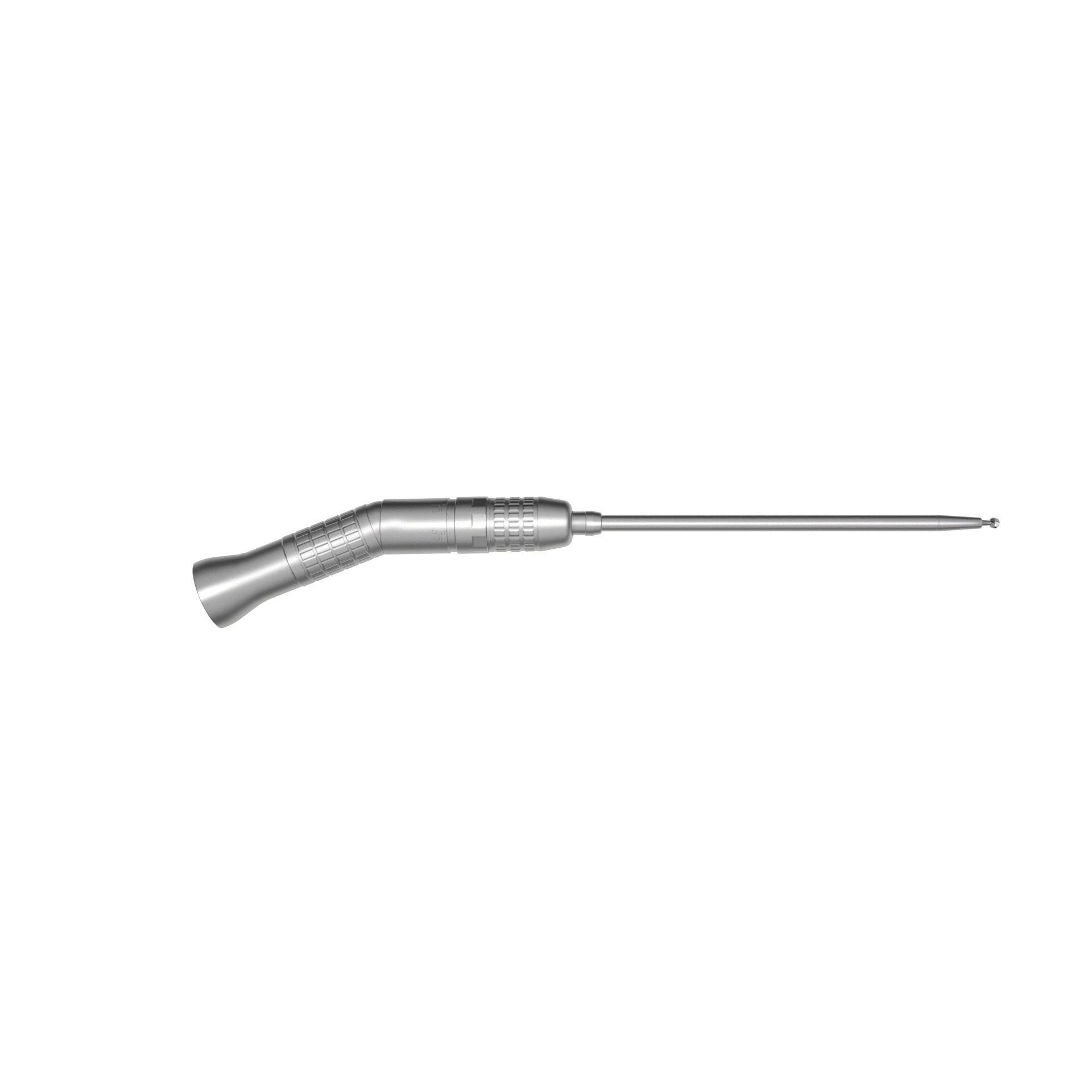

Slim Bur Handpiece MSB2-WX: Angle 21°, speed adjustable from 16,000 to 80,000 r/min (20%–100%), maximum length 175 mm, delivering stable power for the Slim Bur.

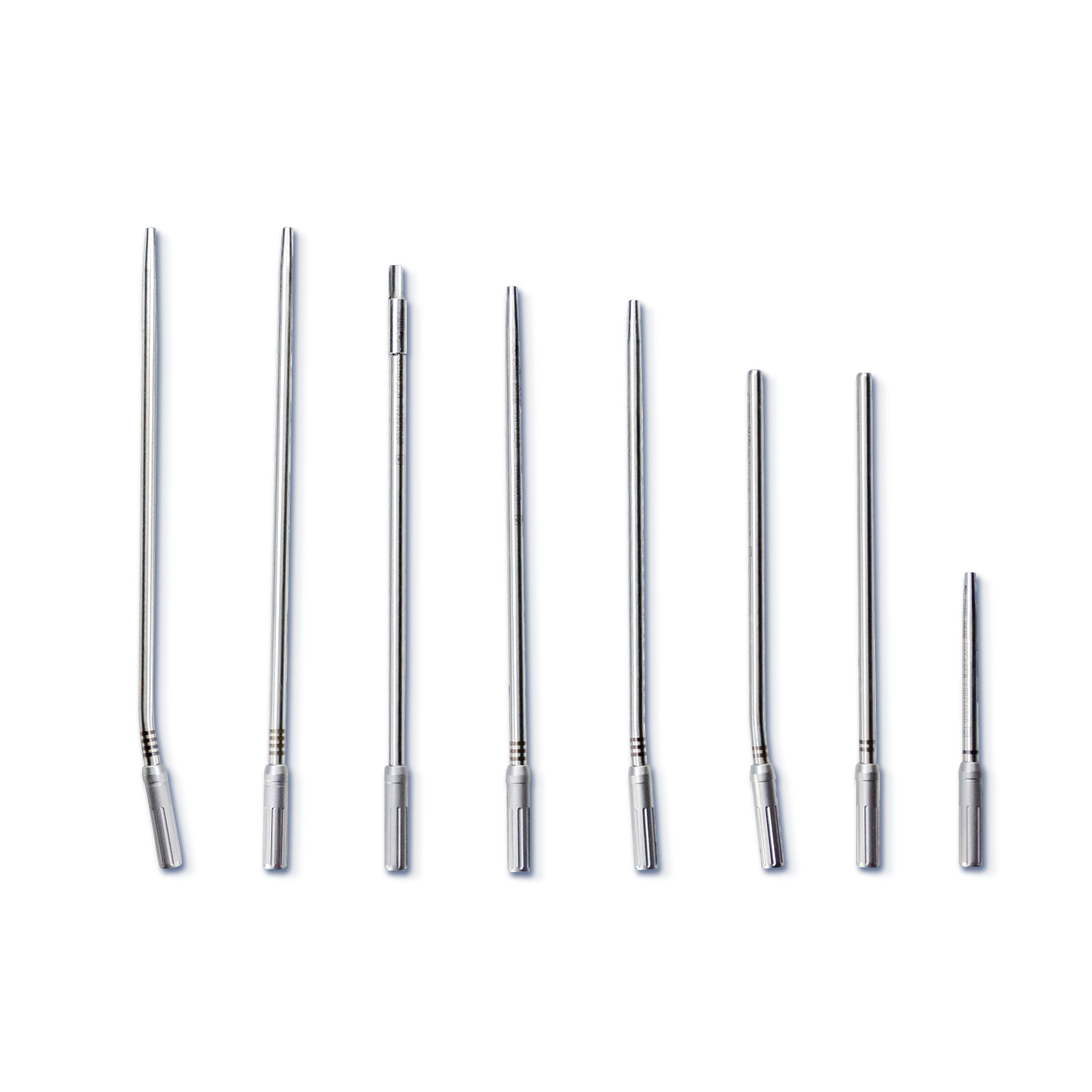

Telescoping Tube MSBF: Diameter 4.5 mm, length 80–175 mm, angles 0°/12°, shapes including straight, angled and curved. It supports flexible positioning during surgery.

FAQ

Can the reusable Slim Bur be sterilized?

Yes, the reusable version is compatible with standard medical sterilization processes, ensuring compliance with clinical infection control requirements.

What is the difference between diamond and stainless-steel tips?

Diamond tips are ideal for hard tissue drilling, while stainless-steel tips are suitable for soft tissue cutting and general surgical manipulation.

How to choose the right length of Slim Bur?

Select the length based on the surgical site depth. Longer lengths (175–200 mm) are for deep areas like skull-base, while shorter lengths (100–155 mm) fit ear or spinal disc procedures.
