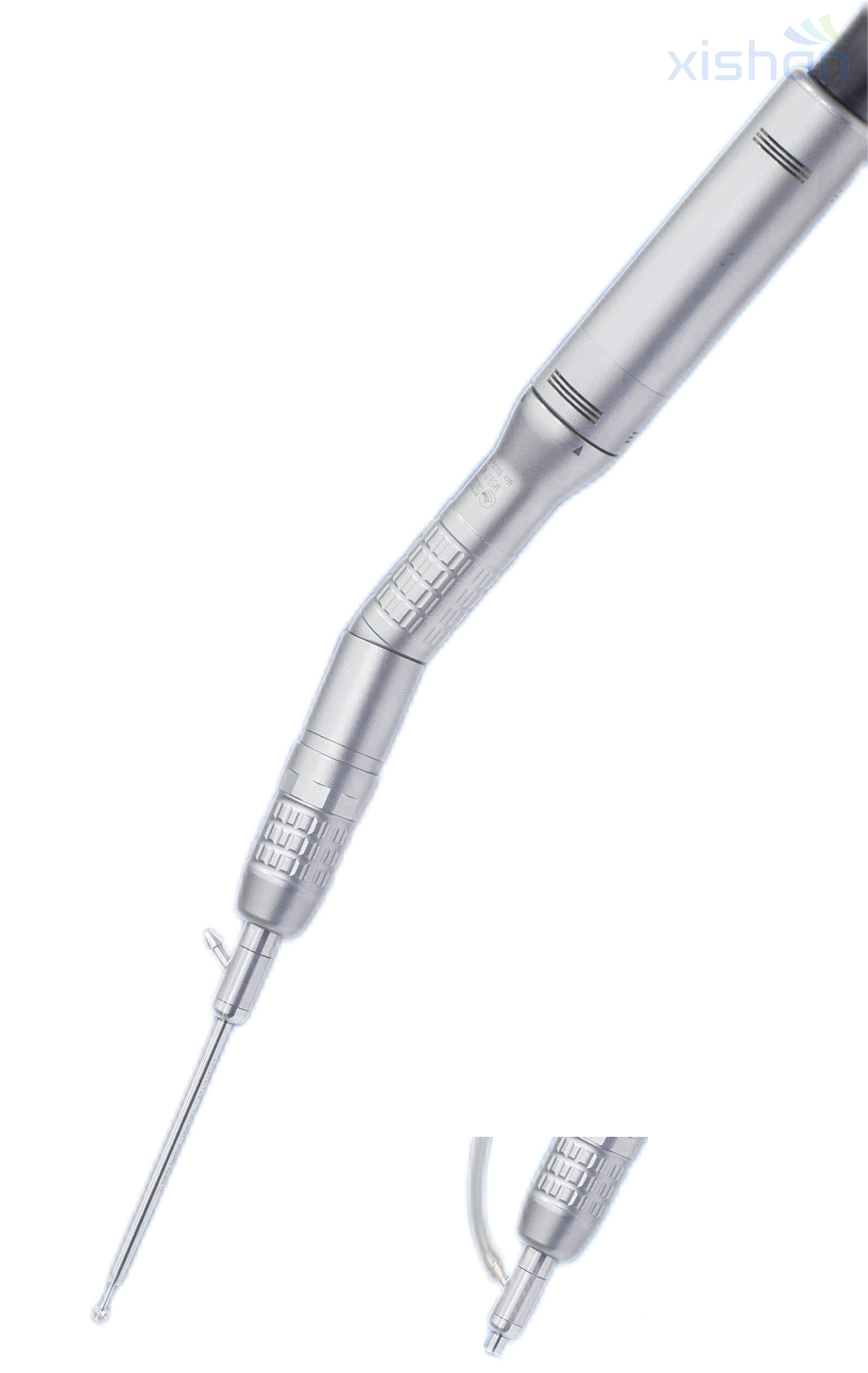

Slim Bur Handpiece

Key Advantages

Steplessly Adjustable Exposure Length

The handpiece supports steplessly adjustable exposure length with a maximum adjustment range of 15 mm. This allows precise matching of the Slim Bur’s working length to surgical requirements, enhancing operational flexibility.

Slim Profile for Unobstructed Vision

Equipped with a 4.5 mm diameter tube, the Slim Bur Handpiece maintains a slim profile to avoid blocking the endoscopic view. Surgeons can clearly observe the surgical site, reducing the risk of accidental tissue damage.

Extended Depth Access & Autoclavable Design

The handpiece enables a maximum surgical depth of 200 mm, facilitating access to deep anatomical areas. It is fully autoclavable, supporting high-temperature sterilization for repeated safe use in clinical settings.

Technical Specification

The Slim Bur Handpiece integrates precise mechanical design and stable performance. Below is the detailed parameter description and specification table:

Core Parameter Description

Angle: 21°, optimized for ergonomic operation during endoscopic surgeries

Speed Range: 16,000–80,000 r/min, with 20%–100% stepless adjustment for different drilling/cutting tasks

Maximum Length: 175 mm, balancing operational comfort and reach capability

Autoclavable: Supports standard medical autoclaving procedures for infection control

Compatibility: Fully matched with the Slim Bur series (all tip types and sizes)

Specification Table

Attachments & Tools

Slim Bur: Available in 1.5–4 mm diameter, 100–200 mm length, with four tip types (Round Diamond, Match-head Diamond, Round Stainless-steel, Match-head Stainless-steel). It supports both reusable and single-use options.

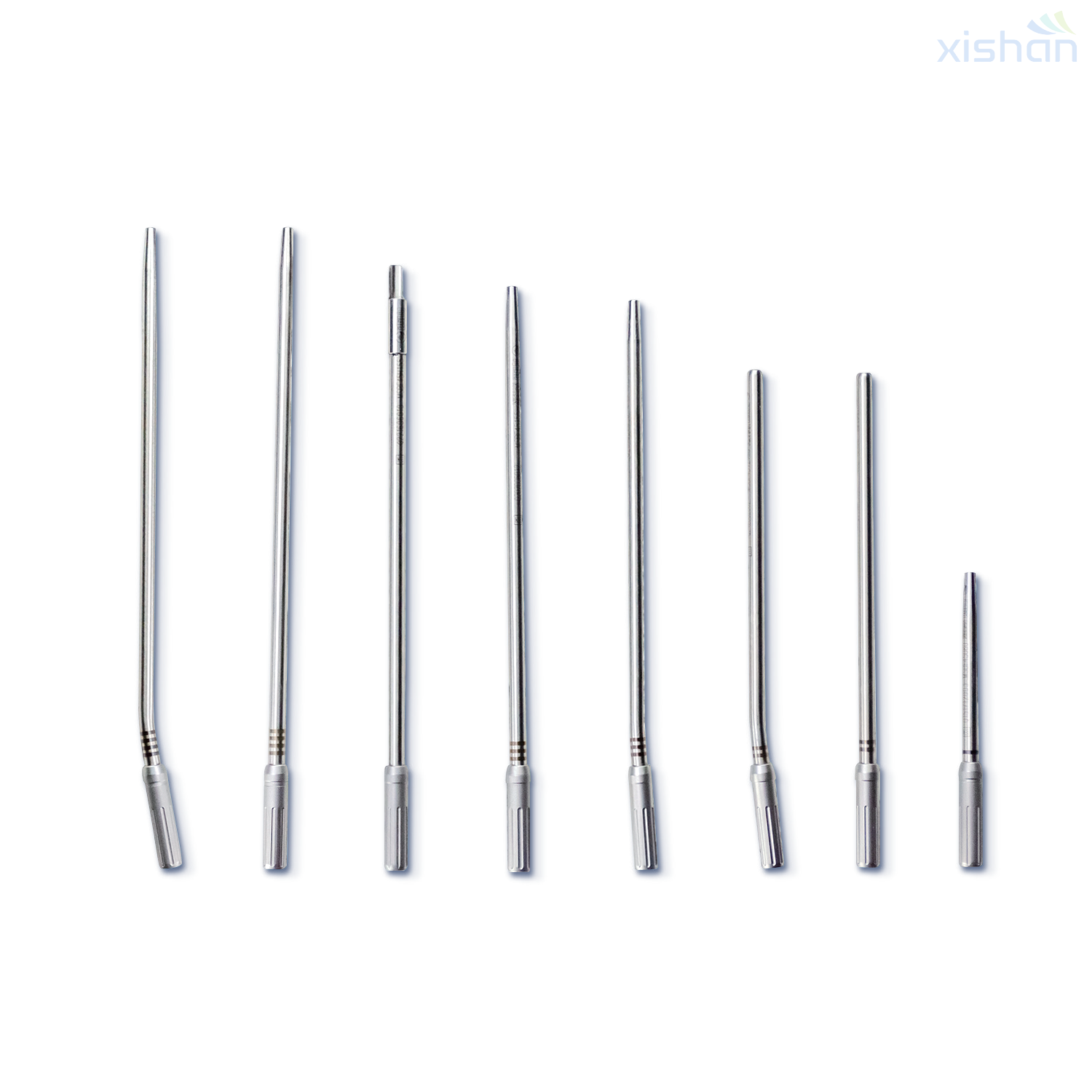

Telescoping Tube MSBF: Diameter 4.5 mm, length 80–175 mm, angles 0°/12°, shapes (straight/angled/curved). It assists in positioning the Slim Bur for complex surgical approaches.

FAQ

What is the speed adjustment range of the handpiece?

The speed can be adjusted from 16,000 to 80,000 r/min (20%–100% of maximum speed) in a stepless manner, adapting to different tissue drilling requirements.

Is the handpiece compatible with all Slim Bur models?

Yes, the Slim Bur Handpiece (MSB2-WX) is fully compatible with all Slim Bur tip types and size configurations.

How many times can the autoclavable handpiece be reused?

The handpiece can be reused multiple times as long as it passes routine clinical inspection after each sterilization process.
